GPS Data Collection Equipment - Page 1

[click each picture for a larger view]



PVTS Cardinal Rule #1: Never hesitate to consult the documentation

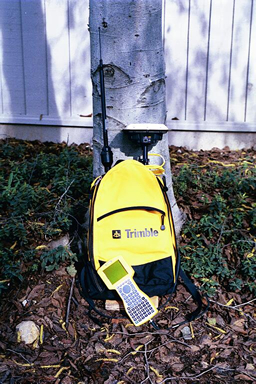

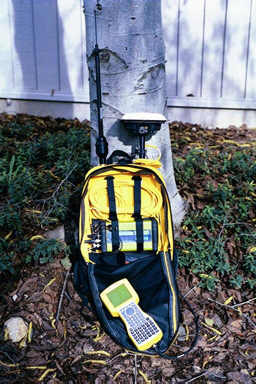

Trimble® 4700 Rover Backpack

and contents

with TSC-1 data controller

and 256 MB PCMCIA flash memory

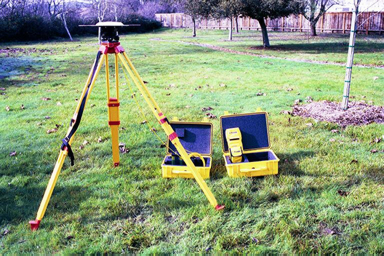

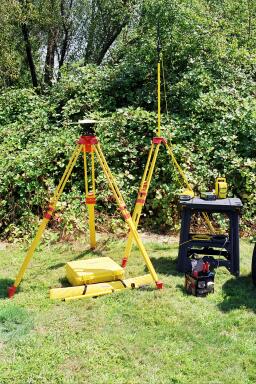

Trimble®  4700 Base Receiver with Micro-centered L1/L2 Antenna with Groundplane

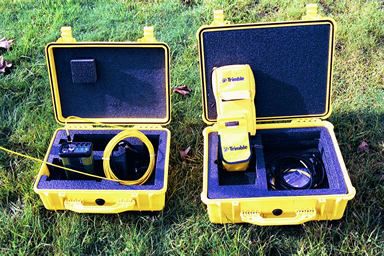

Transport Cases and  Base Receiver Power Supply

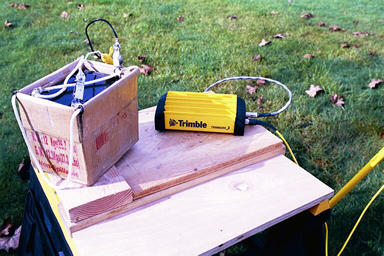

Trimble® TRIMMARK™ 3 radio modem link between base station and rover. Shown with 33Ah sealed lead-acid power supply and broadcast antenna.





For technical specifications on the Trimble® TRIMMARK™ 3,

click below:

 Trimble® TRIMMARK™ 3

(may take up to 70 seconds to load)
